Features
| 96 dB sensitivity |  | ||

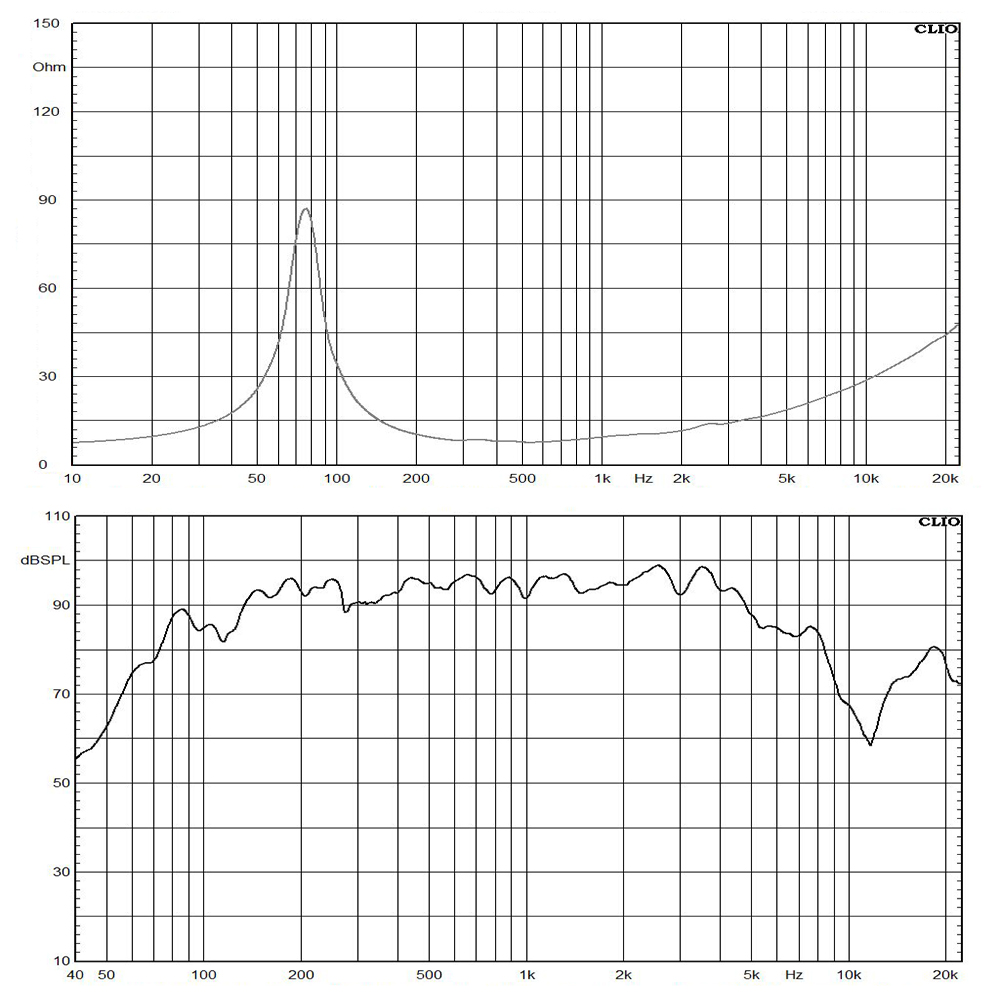

 75-2500 Hz response | |||
| 50mm(2.0 in) Copper voice coil | |||
| 400W continuous program power capacity | |||
Specificatians
| TYPE | FE WOOFER | Frequency Range | 75-2500 (Hz) | |
| Nominal Diameter | 200/8 (mm/in) | Voice Coil Diameter | 50/2.0 (mm/in) | |
| Rated Impedance | 8 (ohm) | Winding Material | Copper | |
| Minimum Impedance | 7.5 (ohm) | Former Material | Glass Fibre | |
| AES Power Handing | 400 (Watts) | Winding Depth | 14/0.55 (mm/in) | |
| Peak Power Handing | 800 (Watts) | Magnetic Gap Depth | 8/0.31 (mm/in) | |
| Sensitivity | 96 (dB) | Magnetic Material | Ferrite Ring |
Thiele & Small Parameters
| Fs | 76 (Hz) | Mms | 27 (g) | |
| Re | 5.6 (ohm) | Vas | 10 (liters) | |
| Qms | 4.3 | Sd | 224 (cm2) | |
| Qes | 0.3 | L1kHz | 0.5 (mh) | |
| Qts | 0.28 | Xmax | ±5 (mm) | |
| Bl | 15.7 (T.M) | EBP | 253 (Hz) |
Mounting And Shipping
| Overall Diameter | 235/9.25 (mm/in) | Flange And Gasket Thickness | 10/0.39 (mm/in) | |
| Bolt Circle Diameter | 217/8.54 (mm/in) | N.W. (1 pc) | 4.2 / 9.2 (kg/lb) | |
| Mount Baffle Cut-out | 185/7.28 (mm/in) | G.W. (4 pcs) | 18 / 39.6 (kg/lb) | |
| Speaker Depth | 102/4.01 (mm/in) | Shipping Size (4 pcs) | 420x260x290 (mm) | |
| Mounting Hole | 4 |
